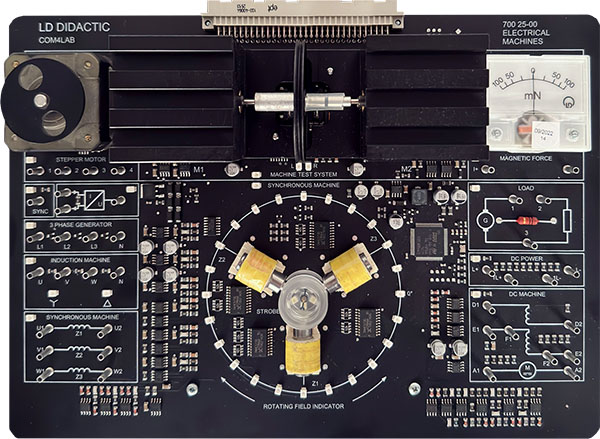

COM4LAB Board: Electrical Machines

The experiment board to the COM4LAB courses Asynchronous Machines, Synchronous Machines and DC Machines (supplied separately).

There are several function blocks on the experiment board, which are put into operation and also interconnected with each other depending on the selected experiment. The resulting circuits are investigated in the course of the corresponding experiments. The active function blocks are indicated by a lit green LED.

The experiment board, housed within a sturdy board carrier, is to be used in conjunction with, and powered by the Master Unit (supplied separately). Circuits are wired by using 2 mm safety cables (supplied separately).
