COM4LAB Board: Reception and Transmission Technology

The experiment board to the COM4LAB courses Analogue Transmission Techniques AM, FM and PSK, Digital Modulations QPSK and QAM, Digital Communication und Bi- and Omnidirectional Communication (supplied separately).

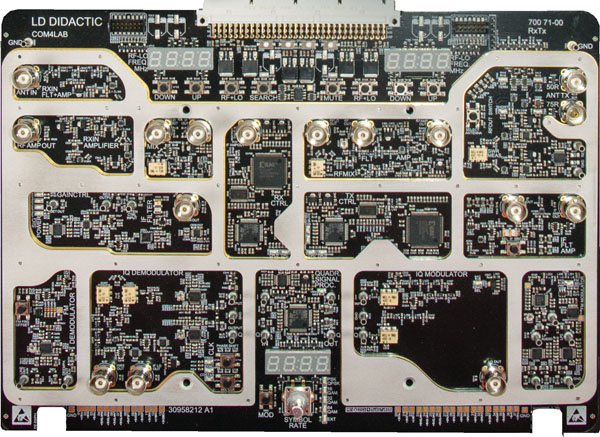

There are several function blocks on the experiment board, which are put into operation and also interconnected with each other depending on the selected experiment. The resulting circuits are investigated in the course of the corresponding experiments.

A metal frame is screwed onto the experiment board. It serves to shield electromagnetic fields between the individual function blocks and as a heat sink.

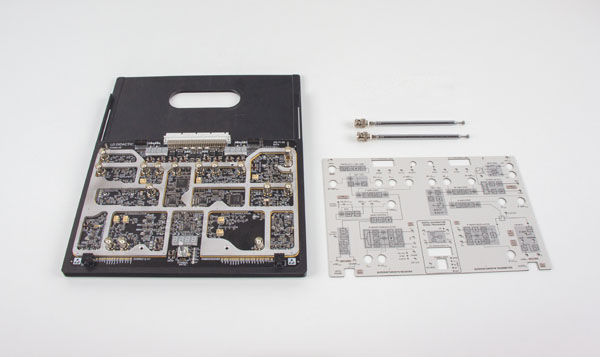

The experiment board, housed within a sturdy board carrier, is to be used in conjunction with, and powered by the Master Unit (supplied separately). Circuits are wired by using BNC-BNC cables and  2 mm safety cables (supplied separately).
