Quantitative observation of the Compton effect

Quantitative observation of the Compton effect

VP6.5.6.1

Energy shift of the Cs-137 line when scattered in different directions (P6.5.6.1)

This product is classified as a dangerous good and is not available for online purchase.

For ordering the dangerous good or other information please contact our customer service center.
This experiment/set up contains dangerous goods.
These are not available for online purchase.
You may order the experiment/set up without the dangerous goods.

For ordering the dangerous good or other information please contact our customer service center.
Email: webshopuk@ld-didactic.de
Telephone:+49 (0) 22 33 / 604 – 319
Go to contact form

Request an offer

Name *

Email *

Thank you for your inquiry. We will get back to you as soon as possible.

This product contains dangerous substances!

Description

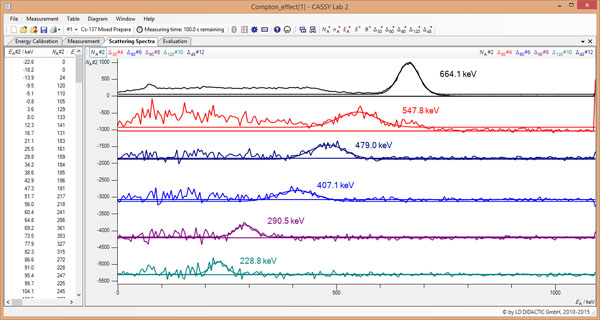

In the experiment P6.5.6.1, the Compton scattering of γ quanta with the energy E₀ = 667 keV at the quasi-free electrons of an aluminium scattering body is investigated. For each scattering angle ϑ, a calibrated scintillation counter records one γ spectrum with and one without aluminum scatterer as a function of the respective scattering angle. The further evaluation utilizes the total absorption peak of the differential spectrum. The position of this peak gives us the energy E(ϑ). Its integral counting rate N(ϑ) is compared with the calculated effective cross-section.

Components of equipment sets

1	559800 4	Equipment set for Compton scattering
1	559809 8	Cs-137 preparation, 3.7 MBq
1	559845 8	Mixed nuclide preparation, α, β, γ
1	559901	Scintillation counter
1	559912 4	Detector output stage
1	52168 8	High-voltage power supply, 1.5 kV
1	524013 8	Sensor-CASSY 2
1	524058 8	MCA box
1	524220 4	CASSY Lab 2
1		additionally required: PC with Windows XP/Vista/7/8/10 (x86 or x64)

Experiment Instructions

PDF (Description from CASSY Lab)

P6.5.6.1 Quantitative observation of the Compton effect
