Compton effect: Measurement the energy of the scattered photons as a function of the scattering angle

P6.3.7.2
Compton effect: Measurement the energy of the scattered photons as a function of the scattering angle Energy shift of the scattered X-rays at different angeles (P6.3.7.2)
Compton effect: Measurement the energy of the scattered photons as a function of the scattering angle
Compton effect: Measurement the energy of the scattered photons as a function of the scattering angle Energy shift of the scattered X-rays at different angeles (P6.3.7.2)
Compton effect: Measurement the energy of the scattered photons as a function of the scattering angle Energy shift of the scattered X-rays at different angeles (P6.3.7.2)
Compton effect: Measurement the energy of the scattered photons as a function of the scattering angle
1
2
3
PrevNext
Compton effect: Measurement the energy of the scattered photons as a function of the scattering angle

This product is classified as a dangerous good and is not available for online purchase.

For ordering the dangerous good or other information please contact our customer service center.
 This experiment/set up contains dangerous goods.
These are not available for online purchase.
You may order the experiment/set up without the dangerous goods.

For ordering the dangerous good or other information please contact our customer service center.
 Email: webshopuk@ld-didactic.de
Telephone:+49 (0) 22 33 / 604 – 319
Go to contact form

˟

Request an offer

Thank you for your inquiry. We will get back to you as soon as possible.

˟

Description

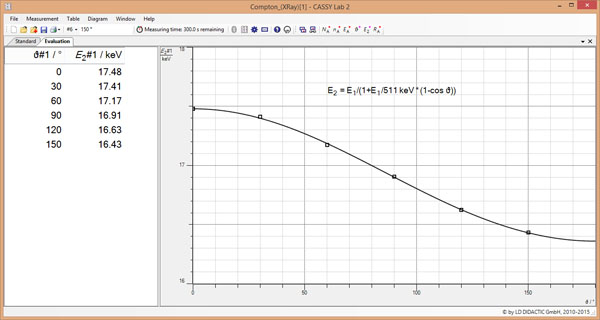

The object of the experiment P6.3.7.2 is to record directly the energy spectra of the scattered X-rays with the X-ray energy detector as a function of the scattering angle ϑ. The energy E(ϑ) of the scattered photons at different angles is determined and compared with the calculated energy obtained from conservation of energy and momentum by using the relativistic expression for the energy:

Components of equipment sets

1 554 800 X-ray apparatus LD
1 554 861  8  X-ray tube, Mo LD
1 554 831  8  Goniometer LD
1 554 8371  8  Compton accessory, X-ray II LD
1 559 938  8  X-ray energy detector LD
1 524 013  8  Sensor-CASSY 2 LD
1 524 058  8  MCA box LD
1 524 220  4  CASSY Lab 2 LD
1 501 02  8  BNC cable, 1 m LD
1 additionally required:
PC with Windows XP/Vista/7/8/10 (x86 or x64)
