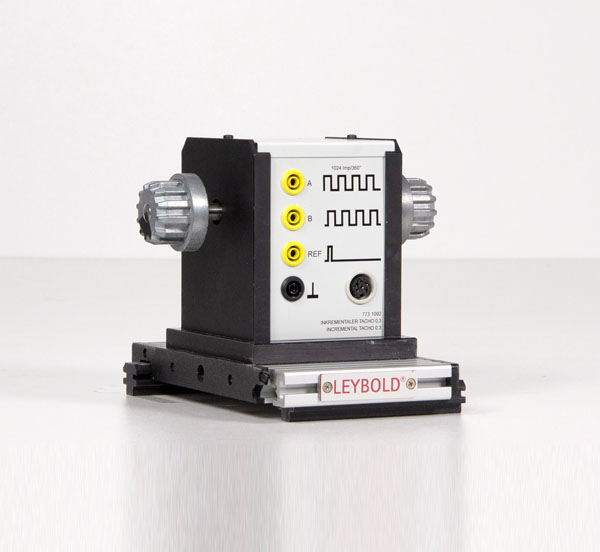

Incremental tacho, 0.3

7731092

Description

For registering the speed of electrical machines in the 0.3 kW power class, as well as for incremental positioning of a servo machine. The TTL-compatible signals A, B and REF are accessible via 4 mm sockets. 1024 pulses at A or B correspond to a mechanical angle of rotation of 360 degrees. The signals A and B are phase-shifted by 90 degrees for the determination of the shaft's rotation direction. The REF pulse is generated once per shaft revolution.

Technical data

Connection: 6-pin DIN socket
Speed: max. 10,000 rpm
Increments: 1024 pulses/360°

Scope of delivery

Connection cable, 6-pin, L = 1.5 m
