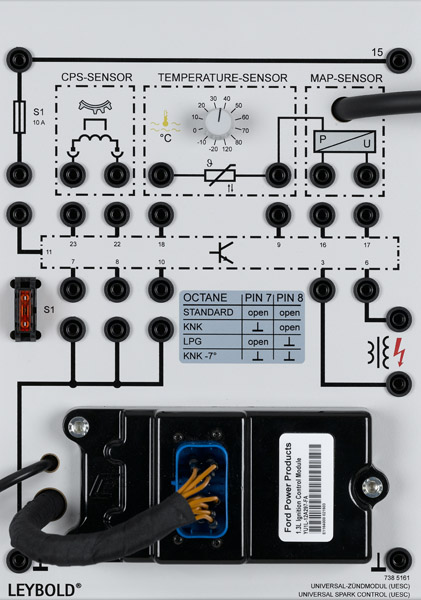

Universal ignition module (UESC)

Universal ignition module (UESC)

7385161

Description

Ignition map control unit for DIS and SSI ignition system; control of ignition timing as a function of speed and crankshaft position data supplied by CPS sensor 738515, with engine-dependent data (load, temperature) taken into consideration.

The load can be detected by means of a built in MAP sensor which can be used together with the hand vacuum pump 37558.

To be adapted to various fuel types the default octane setting can be changed.

Technical data

Supply voltage: 13.8 V=
No of cylinders: 4
CPS type: VRS
Advance range: 40 degrees BTDC to 5 degrees ATDC
Current limitation: yes
Toothed wheel coding: 36-1
Speed range: 0 - 4,000 rpm

Related Documents

PDF (Instruction Sheet)

[738 5161] Universal ignition module (UESC)
