Oscillations of a spring pendulum and determination of oscillation period as a function of the oscillating mass - Measuring with CASSY

Oscillations of a spring pendulum and determination of oscillation period as a function of the oscillating mass - Measuring with CASSY

VP1.5.2.1

Path, velocity and acceleration of the pendulum (P1.5.2.1)

This product is classified as a dangerous good and is not available for online purchase.

For ordering the dangerous good or other information please contact our customer service center.
This experiment/set up contains dangerous goods.
These are not available for online purchase.
You may order the experiment/set up without the dangerous goods.

For ordering the dangerous good or other information please contact our customer service center.
Email: webshopuk@ld-didactic.de
Telephone:+49 (0) 22 33 / 604 – 319
Go to contact form

Request an offer

Name *

Email *

Thank you for your inquiry. We will get back to you as soon as possible.

Description

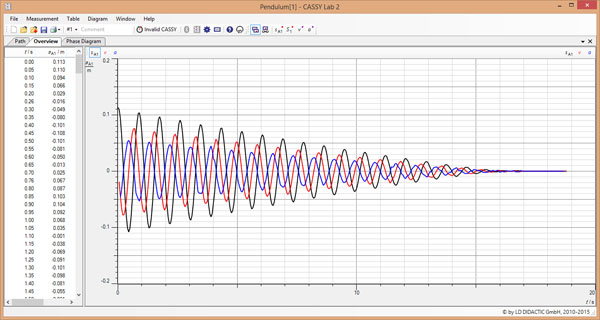

In the experiment P1.5.2.1, the harmonic oscillations of a spring pendulum are recorded as a function of time using the motion transducer and the computer-assisted measured value recording system CASSY. In the evaluation, the oscillation quantities path x, velocity v and acceleration a are compared on the screen. These can be displayed either as functions of the time t or as a phase diagram.
The experiment records and evaluates the oscillations of a spring pendulum for various suspended masses m. The relationship

for the oscillation period is verified.

Components of equipment sets

1	35210 8	Helical spring, 3 N/m
5	34263 4	Weight 50 g
1	33621 4	Holding magnet
1	337462 4	Combination light barrier
1	337464 8	Combination spoked wheel
1	524074 4	Timer S
1	50116 4	Multi-core cable, 6-pole, 1.5 m
1	524013 8	Sensor-CASSY 2
1	524220 4	CASSY Lab 2
1	30001 4	Stand base, V-shaped, large
1	30041 4	Stand rod, 25 cm, 12 mm Ø
1	30046 4	Stand rod, 150 cm, 12 mm diam.
2	30101 4	Leybold multiclamp
1	30108 8	Clamp with hook
1	30948 4	Fishing line
1	500441 4	Connecting lead 19 A, 100 cm, red
1	500442 4	Connecting lead 19 A, 100 cm, blue
1		additionally required: PC with Windows XP/Vista/7/8/10 (x86 or x64)

Experiment Instructions

PDF (Description from CASSY Lab)

P1.5.2.1 Oscillations of a spring pendulum and determination of oscillation period as a function of the oscillating mass - Measuring with CASSY
