Generating a voltage surge in a conductor loop with a moving permanent magnet

VP3.4.1.1
Generating a voltage surge in a conductor loop with a moving permanent magnet
Generating a voltage surge in a conductor loop with a moving permanent magnet Induced voltages of a moving magnet (P3.4.1.1)
Generating a voltage surge in a conductor loop with a moving permanent magnet

This product is classified as a dangerous good and is not available for online purchase.

For ordering the dangerous good or other information please contact our customer service center.
 This experiment/set up contains dangerous goods.
These are not available for online purchase.
You may order the experiment/set up without the dangerous goods.

For ordering the dangerous good or other information please contact our customer service center.
 Email: webshopuk@ld-didactic.de
Telephone:+49 (0) 22 33 / 604 – 319
Go to contact form

˟

Request an offer

Thank you for your inquiry. We will get back to you as soon as possible.

˟

Description

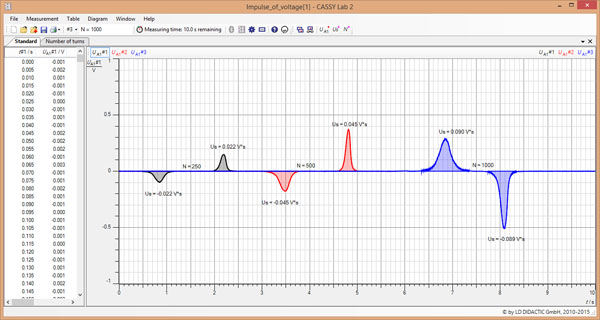

In the experiment P3.4.1.1, the voltage surge is generated by manually inserting a bar magnet into an air coil, or pulling it out of a coil. The curve of the voltage U over time is measured and the area inside the curve is evaluated. This is always equal to the flux Φ of the permanent magnet inside the air coil independent of the speed at which the magnet is moved, i. e. proportional to the number of turns of the coil for equal coil areas.

Components of equipment sets

1 51012  8  Cylindrical bar magnets, pair LD
1 56213  4  Coil, 250 turns LD
1 56214  4  Coil, 500 turns LD
1 56215  4  Coil, 1 000 turns LD
1 524013  8  Sensor-CASSY 2 LD
1 524220  4  CASSY Lab 2 LD
1 500441  4  Connecting lead 19 A, 100 cm, red LD
1 500442  4  Connecting lead 19 A, 100 cm, blue LD
1 additionally required:
PC with Windows XP/Vista/7/8/10 (x86 or x64)

Experiment Instructions

PDF (Description from CASSY Lab) PDF (Description from CASSY Lab) P3.4.1.1 Generating a voltage surge in a conductor loop with a moving permanent magnet
